Introduction

We love to Connect!​ - Seamless Warehousing, Effortless Integration​

"Black box" approach​

Definition of "Black box" for D365 F&SCM​

  • An external warehouse system is mapped as a single location from the perspective of Dynamics 365.

Information D365 F&SCM has about the external system​

  • Quantities, value, and inventory dimensions:
    • Product variants
    • Batches
    • Serial numbers
    • etc.

Information D365 F&SCM does not have​

  • Exact storage locations of individual items inside the external system.
  • Storage and retrieval strategies, which are managed by the external warehouse solution itself.

Prerequisites and Integration Points

Prerequisites​

  • D365 F&SCM Advanced Warehouse Management
  • Utilization of the "black box" approach is suitable

Use cases​

  • Integrations of external (automated) warehouses
  • Integrations with 3PLs

Applicable integration/trigger points for D365 F&SCM processes​

Event-based triggers: D365 F&SCM warehouse orders​

  • Sales order
  • Purchase order
  • Transfer order
  • Production order
  • Raw material pick
  • Replenishment

Available hooks to run custom/extended X++ code if needed​

  • Warehouse order creation, change, or cancellation
  • Send warehouse orders and receive warehouse order responses
    • Send data to the “black box”
    • Receive data from the “black box”
  • Inbound order response processing
    • Run business logic to update D365 F&SCM objects

Other Processes​

  • Periodic: master data export (configurable)
  • Inventory: counting or adjustments

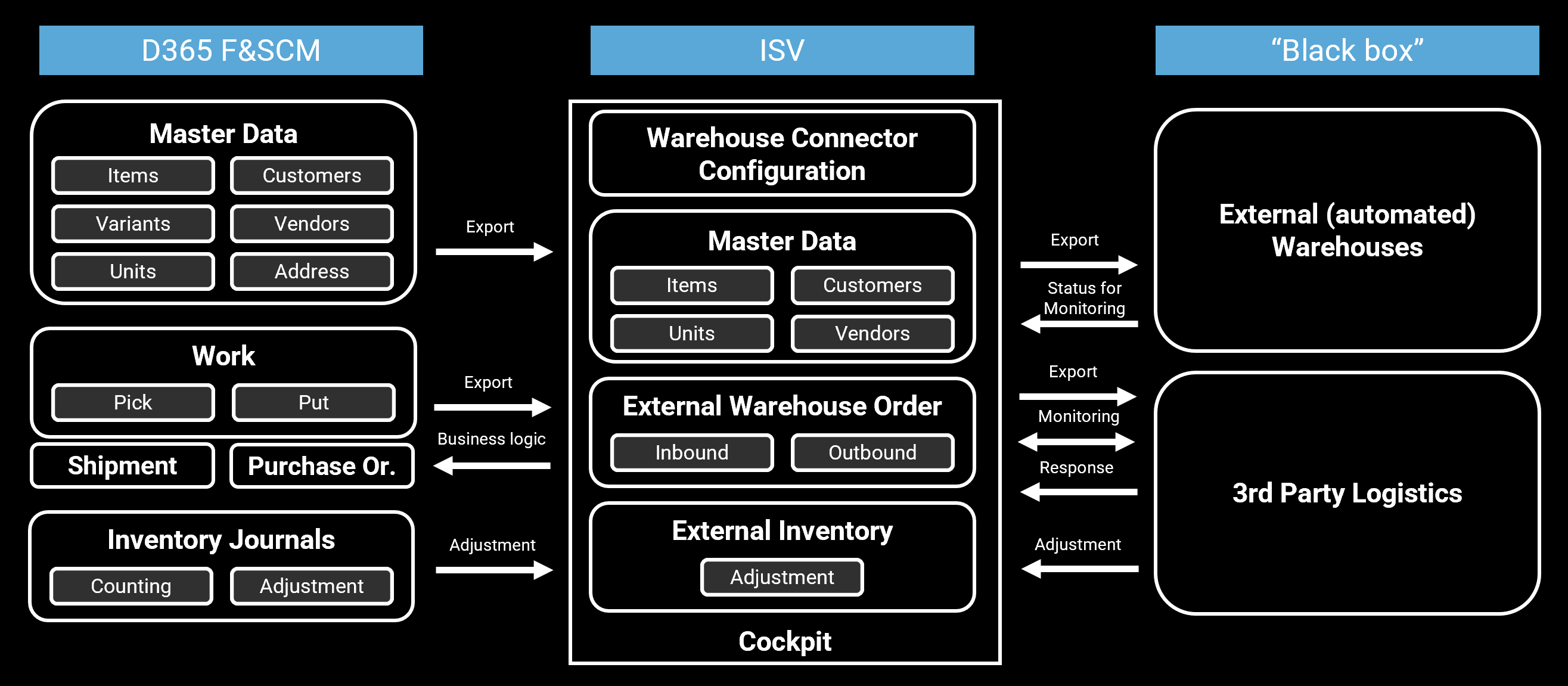

Overview​

Overview

Visual Representation​

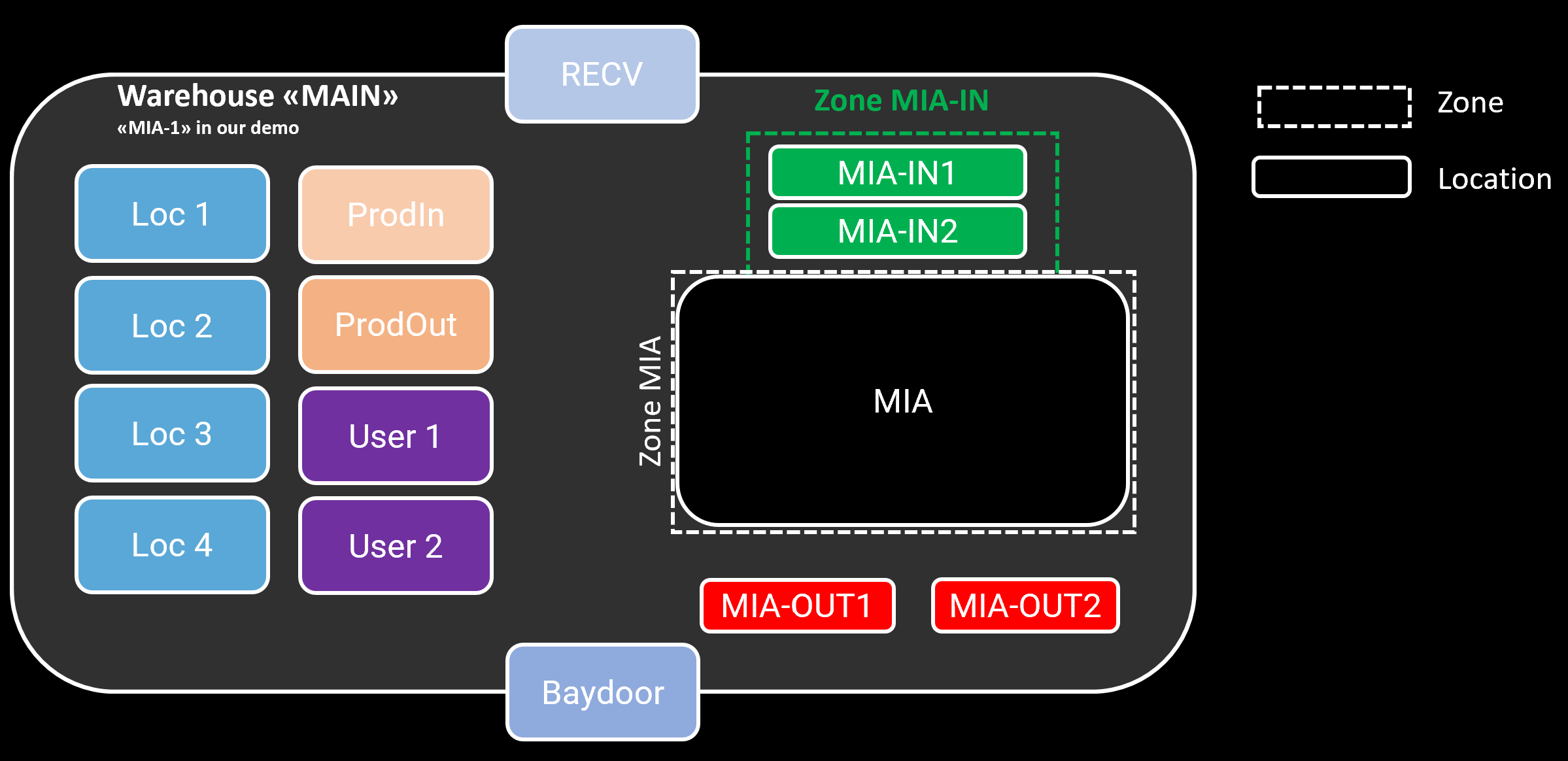

Simple Example Configuration
